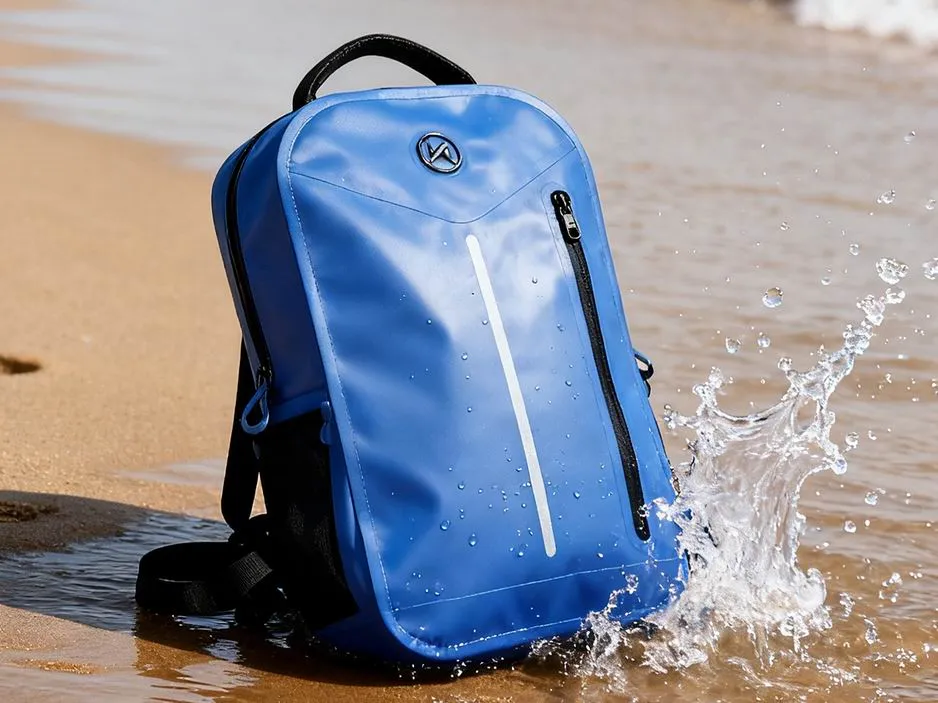

Waterproof Backpack Ergonomics: Designing Comfort Into a Welded Shell

Waterproofing Adds Stiffness

Every waterproofing method adds stiffness, and stiffness is the enemy of comfort. A coating, a laminated film or a welded seam all raise the bending modulus of the panel. A 500D polyester that drapes softly at 220 gsm can become visibly boardy once a 0.15 mm TPU film is laminated to the face. That is why the ergonomics conversation belongs in the first sampling round of any OEM waterproof bag programme, not after the shell is frozen. That boardy panel does not wrap around the back, so load concentrates on a smaller contact patch and pressure per square centimeter rises.

The relationship is measurable and worth putting into a spec. Bending stiffness rises roughly with the cube of thickness, so moving from a 0.10 mm to a 0.20 mm TPU face roughly doubles the coating weight but can multiply panel stiffness several times over. If your pack feels like a box, the cause is usually coating thickness rather than the base fabric denier, and the fix is often a lighter coating on a stronger weave rather than a softer pad.

Stiffness also changes how the pack behaves when it is less than full. A soft pack collapses and hugs the back. A stiff pack holds its shape and rocks. Every welded backpack in the 20 to 30 liter band needs this considered explicitly. That rocking motion is what users describe as the pack feeling heavy, and it is why the compression system matters more on a welded build than on a sewn one. Compression on a welded pack is not a styling detail; it is the suspension.

Where you need both stiffness and comfort, split the functions. Use a stiffer coated panel for structure and let the contact surface do the conforming, with a lower-density foam and a channel geometry that lets the panel flex along defined lines. Our hiking backpack OEM platform uses exactly this split above 30 liters.

• Panel stiffness rises roughly with the cube of coating thickness
• A boxy feel usually comes from coating weight, not from fabric denier
• Stiff shells rock when under-filled, which reads as extra weight
• Compression on a welded build is structural, not decorative
• Separate structure from contact comfort rather than padding harder

Back Panel and Airflow Trade-Off

Airflow and waterproofing pull in opposite directions. A breathable back panel needs either open mesh or air channels, and both are hard to build on a shell that has to be impermeable. The usual compromise is a suspended panel: a coated outer shell carries the load and a separate mesh or foam panel rides on spacers, leaving an air gap of roughly 8 to 15 mm between the shell and the wearer's back.

Suspension works, but it costs you center of gravity. Every millimeter the load sits away from the spine increases the moment arm and the effort needed to stabilize it. A 15 mm gap is comfortable in warm weather but measurably worse on technical ground. The rule we give buyers: use a suspended panel for commuting and warm-climate urban lines, and a close-fitting channeled panel for anything the customer will hike or ride with.

If you stay close-fitting, channels do most of the work. Vertical channels of 6 to 10 mm depth with a breathable face fabric move enough air to matter, and they double as flex lines that let a stiff panel conform to the back. Horizontal channels look good in a render but trap heat and do nothing for conformability. Test with a sweat mapping panel rather than with opinion.

Foam choice is the last variable. Open-cell foam breathes and conforms but holds water, which is a problem on a waterproof pack that will get rained on. Closed-cell ethylene-vinyl acetate does not absorb water but is warmer. A practical answer is a closed-cell base with a breathable spacer fabric face, which keeps the pack dry inside and still moves air. See our fabric and foam selection guide.

Shoulder Strap Geometry on Slick Fabric

The classic backpack strap is an S curve: it leaves the top of the panel narrow, widens over the trapezius, and curves back in under the arm. On a waterproof pack the same curve has to work against a fabric that does not grip. A TPU-coated face has a low coefficient of friction, so a strap loaded with 8 kg will slide outward and downward unless the geometry and the padding resist it.

Three parameters fix the slide. Strap width at the shoulder should be 45 to 60 mm on packs above 20 liters, which spreads pressure and gives the foam somewhere to sit. Strap spacing at the top of the panel should be 130 to 180 mm measured between strap centers, which keeps the straps off the neck. And the strap needs a curvature radius of roughly 250 to 400 mm through the chest section, so it wraps rather than bridges.

Padding density matters more than padding thickness on slick shells. A 10 mm slab of 25 kg per cubic meter foam collapses under load and lets the strap roll. An 8 mm slab of 60 kg per cubic meter foam holds its section and keeps the strap flat against the body. Specify density, not thickness, because thickness is what suppliers quote and density is what determines whether the strap works after an hour.

The underside face fabric is the cheapest grip fix available. A brushed tricot or a silicone-printed face on the strap underside raises friction against a coated shell or a rain jacket without adding meaningful weight or cost. It also reduces the squeak that slick-on-slick contact produces. Specify it alongside the shell and trim package so the strap face and the panel coating are qualified together rather than in isolation. Test it by loading the pack to 8 kg and walking for 15 minutes on an incline. Full strap specifications are covered in our tech pack template.

Load Transfer and Hip Belt Options

Load transfer is the single largest lever on perceived weight. A well-fitted hip belt moves 60 to 80 percent of pack weight off the shoulders and onto the pelvis, which is built to carry it. Without a hip belt, the shoulders carry close to 100 percent, and most users report discomfort above roughly 7 kg. That threshold is the point at which a hip belt stops being optional.

There are four realistic options and each has a clear place. No hip belt is correct under 18 liters or under 5 kg typical load. A webbing hip belt, meaning a simple 25 mm strap with a buckle, stabilizes the pack but transfers little load; it is right for 18 to 25 liters. A padded hip belt with a load-transfer cut transfers real load and suits 25 to 40 liters. A removable padded belt serves brands that want one shell across two channels.

Anchorage is where hip belts fail on waterproof shells. The belt does not tear; it pulls away from the panel. A welded anchor tab spreads that load across a wide area and usually outperforms a stitched tab in loaded drop testing. If you specify a padded belt, specify the anchor geometry in the same drawing, and require the drop test to be run with the belt loaded and fastened.

Fit range matters as much as structure. A padded belt should cover hip circumferences from roughly 75 cm to 125 cm with a single size, which means the belt wings need to be long enough to wrap without the buckle sitting on the hip bone. Test with a fit panel spanning the 5th to 95th percentile for your target market, not with one internal volunteer. Our fit and wear test protocol sets the panel size and the pass criteria.

1. Set the load threshold: hip belt recommended above 7 kg typical carried weight
2. Choose webbing belt for 18 to 25 L, padded belt for 25 to 40 L
3. Specify the anchor geometry, welded tab preferred over stitched on coated shells
4. Confirm the belt covers 75 cm to 125 cm hip circumference in one size
5. Validate with a loaded drop test with the belt fastened and under tension

Sternum Strap and Stability

The sternum strap is the cheapest stability component in the system and the most frequently deleted for the sake of a clean look. Its job is to stop the shoulder straps from splaying outward, which keeps the load close to the spine and stops the straps from slipping off the shoulders. On a pack above 18 liters, deleting it produces a measurable increase in how heavy the pack feels, even when the scale has not moved.

Height adjustment is the detail that decides whether the strap gets used. A fixed sternum strap is cheap and silent, but it only suits about 60 to 70 percent of users. A sliding rail adds 12 to 20 cm of vertical travel and suits most body types, at the cost of one extra component and some rattle. An elastic section gives comfort during movement but reduces stability under load, so it is the wrong choice above 8 kg.

Position matters as much as travel. The strap should sit roughly 2 to 5 cm below the collarbone, where the straps are closest to vertical. Placing it too high crowds the neck and restricts arm movement; placing it too low does nothing for splay. Mark the correct range in the tech pack and check it against the fit panel rather than the sample photography.

For minimalist builds there is a clean compromise: a removable sternum strap with a fixed attachment point and a magnetic or low-profile buckle. The customer who never uses it takes it off in ten seconds, and the customer who wants it gets full stability. It also removes the rail, which is the part that rattles, and it photographs better than a sliding track. Review the fit guidance on our waterproof backpack range.

Fit Testing Across Body Types

Fit testing is where most waterproof backpack programmes under-invest, and it is the cheapest place to catch a problem. The minimum useful protocol is a fit panel of 8 to 12 people spanning the 5th to 95th percentile for torso length in your target market, tested with a standard load of 6 to 8 kg, over a course that includes stairs, a 10 minute walk and a seated period.

Torso length, not height, is the variable that matters. Measure from the seventh cervical vertebra to the iliac crest, and build your size range around that figure. A single adjustable suspension typically covers a torso range of about 40 to 53 cm, which handles most adult markets. If you sell into a market with a wide torso distribution, plan two suspension sizes rather than one oversized adjuster.

Record pressure, not just opinion. A thin pressure mat across the shoulder and hip contact zones gives you peak pressure in kilopascals, which is comparable between prototypes and between suppliers. A target worth setting is peak shoulder pressure below roughly 25 to 30 kPa at 8 kg, with even distribution across the hip belt wings. Opinion data tells you something is wrong; pressure data tells you where.

Test in the wet, because it is a waterproof pack. Coated shells stiffen when cold and get slicker when wet, so a suspension tuned dry may misbehave in the rain. Run the last validation round after a 30 minute rain room exposure at the rate used for AATCC 35, then repeat the pressure measurement. The delta between dry and wet is the number that predicts real-world complaints.

• Panel size: 8 to 12 people spanning the 5th to 95th percentile torso length
• Measure torso length, not height, from the seventh cervical vertebra to the iliac crest
• Standard test load: 6 to 8 kg distributed, plus stairs, walk and seated periods
• Target peak shoulder pressure below 25 to 30 kPa at 8 kg load
• Validate wet as well as dry, after rain room exposure per AATCC 35

Weight Penalty of Welded Builds

Waterproof construction costs weight, and buyers should budget for it before the target weight is set. The coating is the largest item: a TPU face of 0.15 to 0.25 mm on a 500D base adds roughly 90 to 180 gsm to the panel. On a 22 liter pack with about 0.9 square meters of shell, that is roughly 80 to 160 g of coating alone, before any reinforcement.

The second item is seam construction. A welded seam needs a wider overlap than a sewn seam, typically 15 to 25 mm rather than 8 to 12 mm, and the reinforcement tape adds its own mass. Across 8 to 12 meters of seam on a backpack, the difference is usually 20 to 50 g. The third item is the closure: a coated waterproof zipper typically weighs more per meter than the coil zipper plus storm flap it replaces.

The fourth item is the suspension, because a stiff shell needs more padding to feel the same. Buyers often set a weight target from a sewn reference pack and then discover the welded version is 120 to 250 g heavier. Build that margin into the brief at the start rather than discovering it at the golden sample stage, when the only fixes left are expensive.

If weight is the priority, spend it in the right order. Cut coating thickness first and compensate with a stronger weave and a lighter denier, which typically saves 60 to 120 g. Then trim hardware count, which saves 20 to 60 g. Then simplify the suspension to the minimum that still transfers load. Do not cut the back panel foam; that is the part the customer feels every single day. Options are outlined in our product platform overview.

Ergonomics Checklist for Specifiers

This is the list to paste into an RFQ or a tech pack. Each line is measurable, which is the whole point: an inspector can check it, and a supplier can quote against it. Where a figure is a target rather than a standard, say so, so nobody argues later about whether it was a requirement or an aspiration.

Start with suspension geometry. Strap width at the shoulder 45 to 60 mm above 20 liters. Strap spacing at the panel top 130 to 180 mm between centers. Strap curvature radius 250 to 400 mm. Foam density 55 to 70 kg per cubic meter, with thickness secondary. Sternum strap present above 18 liters, with 12 to 20 cm of vertical travel where a rail is used.

Then load path. Hip belt above 25 liters or above 7 kg typical load, padded with a load-transfer cut, covering 75 to 125 cm hip circumference in one size. Load transfer target 60 to 80 percent to the hips at 8 kg. Hip belt anchorage welded to the shell where geometry allows, and validated by a loaded drop test with the belt fastened.

Finish with validation. Peak shoulder pressure below 30 kPa at 8 kg. Fit panel of 8 to 12 people across the torso range. Wet-state re-test after rain room exposure per AATCC 35, followed by a hydrostatic head check to ISO 811 and an immersion check to IEC 60529 wherever a rating will be printed. Final inspection to AQL 2.5 (ISO 2859-1) on FOB Xiamen terms, payment by T/T 30/70, sampling in 6 to 10 working days and bulk in 35 to 50 days. Send this list with your drawing set to the custom OEM team for a costed response.

• Strap width at shoulder: 45 to 60 mm above 20 L
• Strap spacing at panel top: 130 to 180 mm between centers
• Strap curvature radius: 250 to 400 mm through the chest section
• Foam density: 55 to 70 kg per cubic meter, thickness secondary
• Hip belt: above 25 L or above 7 kg typical load, padded with transfer cut
• Load transfer target: 60 to 80 percent to the hips at 8 kg
• Peak shoulder pressure: below 30 kPa at 8 kg, measured wet and dry
• Final inspection: AQL 2.5 (ISO 2859-1), FOB Xiamen, T/T 30/70

Frequently Asked Questions

Q1: Why do waterproof backpacks feel less comfortable than regular backpacks?

A: Waterproofing raises panel stiffness, blocks airflow and adds mass. A TPU coating that lifts hydrostatic head to 10,000 mm under ISO 811 also raises bending modulus, so the shell stops wrapping the back and load concentrates on a smaller contact patch. The fix is strap curvature, vertical panel channels and a real hip belt, not a thicker pad.

Q2: How much weight should a hip belt carry?

A: A well-fitted padded hip belt should transfer roughly 60 to 80 percent of pack weight to the pelvis at an 8 kg load. A plain 25 mm webbing belt transfers only about 10 to 20 percent, so it stabilizes the pack but does not really relieve the shoulders. Specify the padded transfer-cut belt above 7 kg carried weight.

Q3: What strap width is correct for a 25 L waterproof backpack?

A: Specify 45 to 60 mm at the shoulder for packs above 20 liters. Wider straps spread pressure across more contact area and give the foam somewhere to sit without rolling. Moving from 25 mm to 38 mm webbing increases contact area by roughly 50 percent, though it also adds 12 to 22 percent to the strap hardware package.

Q4: How do you test backpack fit properly?

A: Use a panel of 8 to 12 people spanning the 5th to 95th percentile for torso length, measured from the seventh cervical vertebra to the iliac crest. Load 6 to 8 kg and run stairs, a 10 minute walk and a seated period. Record peak shoulder pressure with a mat, targeting below 30 kPa, and repeat the test wet.

Q5: Does a welded backpack weigh more than a sewn one?

A: Yes, realistically 120 to 250 g more on a 22 liter pack. The coating adds roughly 80 to 160 g, the wider welded seam overlap and tape add 20 to 50 g, the coated zipper adds 20 to 45 g, and the extra padding needed for a stiff shell adds 40 to 90 g. Budget that margin into the brief.

Q6: Should a minimalist backpack have a sternum strap?

A: Keep it above 18 liters. Removing it measurably increases shoulder strap splay while walking, and users compensate by over-tightening the shoulder straps, which raises perceived weight. Below 18 liters, or for short urban carries, a fixed or removable strap is acceptable and removes the rattling rail.

Q7: How does cold weather affect waterproof backpack comfort?

A: Coated shells stiffen sharply as temperature drops. A TPU face that is supple at 23 degrees Celsius becomes boardy below freezing, so the pack stops conforming to the back and pressure rises. Cold also makes unfilled POM hardware brittle. Validate suspension and hardware after a soak at minus 20 degrees Celsius.

Q8: What is a realistic peak shoulder pressure target?

A: Set the target below roughly 25 to 30 kPa at an 8 kg load, measured with a thin pressure mat across the shoulder contact zone. Peak matters more than average, because discomfort is driven by the hotspot. Compare prototypes on the same panel and the same load, and always measure wet as well as dry.

Q9: Do air-mesh back panels work on waterproof packs?

A: Yes, with a suspension design. A coated outer shell carries the load while a separate mesh panel rides on spacers, leaving an 8 to 15 mm air gap. The cost is center of gravity: the load moves away from the spine, which is fine for commuting and poor for technical ground. Use channels instead for hiking.

Q10: How much does waterproofing add to pack weight in grams?

A: On a 22 liter pack with roughly 0.9 square meters of shell, expect 120 to 250 g total. Coating contributes 80 to 160 g depending on film thickness, welded seams 20 to 50 g, the coated zipper 20 to 45 g, and additional suspension padding 40 to 90 g. Weigh the reference and the welded prototype to confirm.

Q11: Which foam density should I specify for shoulder straps?

A: Specify 55 to 70 kg per cubic meter and treat thickness as secondary. Low-density foam around 25 kg per cubic meter collapses under an 8 kg load and lets the strap roll, which creates a pressure edge. Denser foam holds its section, keeps the strap flat, and continues to work after an hour of carry.

Q12: How should a backpack be tested in the wet?

A: Run the pack through a rain room exposure at the rate used for AATCC 35, then repeat the pressure measurement and the closure check. Coated shells get slicker and stiffer when wet, so a suspension tuned dry may misbehave in rain. The dry-to-wet delta is the number that predicts field complaints.

Q13: What is the MOQ and lead time for a custom ergonomic waterproof backpack?

A: MOQ is 500 pcs per style and colourway. Sampling runs 6 to 10 working days, extending to 12 to 15 working days when the suspension or closure geometry is complex. Bulk production runs 35 to 50 days after sample approval, with final inspection to AQL 2.5 (ISO 2859-1), FOB Xiamen, and payment by T/T 30/70.

Q14: Where should the hip belt anchor on a coated shell?

A: Anchor it with a welded tab wherever the geometry allows a flat, accessible face, because the tab spreads load across a wide area and outperforms stitching in loaded drop testing. The belt rarely tears; it pulls away from the panel. Specify the anchor geometry in the same drawing as the belt.
