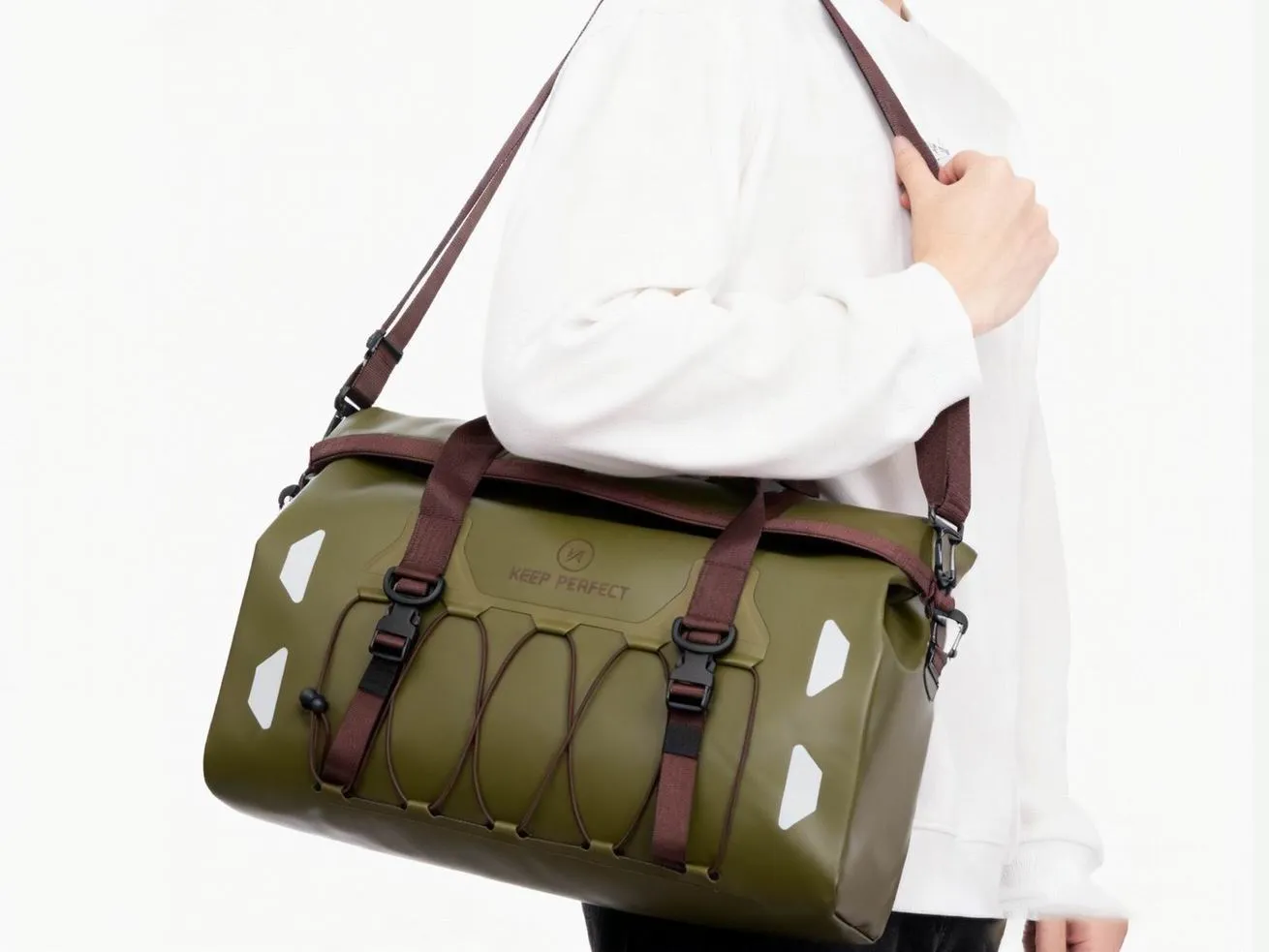

Waterproof Bag Specs for Construction Work Sites

Site Conditions: Water, Grit, Impact

Every other environment in this series attacks a bag with one dominant stress. A construction site attacks with four at once, and two of them are not water. The bag is set down in standing water and wet concrete, it is filled with grit that works into every gap, it is dropped with 20 kg in it, and it is dragged across a slab. A spec built only around water ingress will not survive a month on a structural job.

Grit is the underrated one. Concrete dust and sand enter stitch holes and closures, and once inside they abrade from the inside out, which is invisible until the seam opens. Grit also jams zippers and cam buckles, and the user response is to force them, which is how a closure breaks. The construction answer is the same as the marine one: fewer holes and fewer moving parts in the load path.

Wet concrete is the second underrated one. Fresh concrete is strongly alkaline, and when it is wet on the bag it is caustic to skin and to some coatings and finishes. A bag that can be hosed down at the end of a shift avoids the problem entirely; a bag that cannot will carry alkaline residue into the vehicle and onto the next job. Cleanability is therefore a specification field, not a care instruction.

Then there is impact, and it is a drop rather than a knock. A tool bag is lifted onto a scaffold, set down on a slab, and occasionally falls. A drop from 1 m with 15 kg inside concentrates the whole load into whichever corner arrives first, which is why the base and the lower corners are the parts that decide the life of the bag. Our work-site and tool bag formats are built around that sequence.

• Water: standing water, rain and a hose at the end of the shift
• Grit: concrete dust and sand entering closures and stitch holes, abrading from inside
• Chemistry: wet concrete is strongly alkaline and caustic to skin and finishes
• Impact: a drop from about 1 m with a 15 to 20 kg load, landing on a corner

Rating That Actually Helps

IPX6 is the right ingress target for a construction bag and it is worth understanding why it is enough. A site bag is rained on, hosed down and set in puddles; it is not normally carried underwater. IPX6 under IEC 60529 covers powerful water jets, which is the hose, and it also covers driven rain, which is the weather. Asking for IPX7 as well is reasonable but rarely the thing that decides the product's life.

What does decide it is the base. A bag with an IPX6 shell and a fabric bottom will still soak the tools if it is set down in a puddle for ten minutes, because the water comes in through the underside. A moulded or welded structural base, with the seam above the waterline, does more for a site bag than any ingress rating. If you have one place to spend money in this category, spend it on the base.

There is one case where IPX7 does matter, and it is the survey and site-engineer case. A bag carrying a tablet, a laser measure or a set of drawings gets carried through the weather all day and then put down on a wet surface, and the cost of a single failed instrument dwarfs the cost of the bag. For that SKU, specify IPX7 at 1 m for 30 minutes and require a separate padded electronics compartment. See the IPX rating explained for bag buyers note.

Fabric hydrostatic head still belongs in the brief, but at the level that matters. ISO 811 or AATCC 127 at 10,000 mm or better is a reasonable floor for a site shell, and beyond that the fabric is rarely the failure. What fails is the closure, the seam and the base, so the remaining specification effort should go there. Write the three fields separately and you will get a comparable quote from every supplier you ask.

Abrasion and Puncture Priority

On a site, abrasion and puncture outrank water. A bag that lets in a little water on a wet Friday is an inconvenience; a bag whose corner splits and drops 20 kg of tools onto a slab is a lost shift. So put the reinforcement budget into the base, the lower corners and the tool-contact faces before you spend anything on a higher ingress rating.

Denier is the language this category speaks, and the useful range is 840D to 1680D. A 500D shell is fine for a site-engineer bag carrying documents and a tablet; 840D is the general tool-bag standard; 1000D to 1680D is right for a bag that will be dragged across a slab daily. Read the fabric denier guide before you choose, because denier is a linear-mass measure and it is not a strength guarantee on its own.

Puncture is a coating question, not a weaving question. A sharp rebar end or a chisel point is resisted by the coating film first and the weave second, so a tight 840D weave with a 0.35 mm TPU or PVC coating will outperform a loose 1680D with a thin film. Specify both fields: the base cloth construction and the coating thickness in millimetres. A tech pack that says only 1680D has left the important half out.

Then reduce the target. Round the internal corners, because a sharp internal radius is where a chisel point finds the coating. Put a sleeve over any strap that crosses the base. Fit a scuff panel on the two lower corners and along the base edge. And hold the coated-fabric verification to ISO 1421 and ASTM D751, asking for tear and breaking strength and the adhesion figure together, because adhesion is what separates a scuff from a delamination.

• 840D is the general tool-bag standard; 1000D to 1680D for anything dragged daily
• Coating thickness matters as much as denier: write 0.35 mm or your chosen figure into the pack
• Round internal corners so a chisel point or rebar end cannot find a sharp radius
• Put a scuff panel on the two lower corners and a sleeve over any strap crossing the base

Tool Load and Structural Base

A loaded tool bag is heavy, and a heavy bag fails at the attachment points before it fails anywhere else. A 20-inch bag with a full set of hand tools is 12 to 15 kg; a 24-inch bag with power tools and batteries is 18 to 22 kg. Every strap, handle and attachment in that bag has to be rated for a load well above its static weight, because a drop or a swing multiplies it.

The structural base is the field that separates a professional bag from a consumer one. Three options are standard: a moulded EVA or PP base, which is self-standing and the best compromise; a welded hard base with feet, which is lighter and cheaper; and a reinforced fabric base, which is the cheapest and the one to avoid above 10 kg. Whatever you choose, keep the base seam above the waterline so the underside is one continuous surface.

Handle and strap attachment is where the load lands. We hold three rules: the handle webbing runs under a welded patch rather than onto it, so the load is carried by the film; every load path is bar-tacked on a 25 mm square with a double pass; and the finished assembly, handle and attachment together, is pulled to 40 kg, not 25 kg, because a full tool bag is lifted with a swing.

Then make it stand up. A tool bag that falls over spills its contents into the grit, and a professional will reject it on that alone. A moulded or welded base with a footprint at least 60 percent of the bag's width, plus a low centre of gravity, keeps it upright on an uneven slab. Test it loaded and on a slope, not empty on a bench, and confirm the base type through the custom development route before any tooling is cut. The welding and assembly lines that build these are the same ones we run for the duffel and tote programmes.

Visibility and Safety Colour

High-visibility colour sells in this category and it is one of the few features that a site manager will specify by name. Two things drive it: the base colour, which is usually a fluorescent orange or yellow, and the reflective bands, which are what make the bag visible at night and under machine headlights. Both need to be specified, and they need to be specified differently.

The standard reference matters, because it decides how much material you need. A bag is normally an accessory rather than a garment, so EN 13356, which covers retroreflective accessories for non-professional use, is the usual reference. If a brand or a contractor wants the product to be treated as high-visibility clothing, the reference becomes EN ISO 20471, which sets minimum material areas and performance classes, and in North America the equivalent is ANSI/ISEA 107.

Placement beats quantity, as it does everywhere. Put a continuous band on the two sides and the end faces at roughly working height, and add a piping line along the closure, because the closure is the highest-contrast line on the bag and it stays visible when everything else is covered in dust. On a tool bag the top of the open mouth is also worth marking, since that is the part seen from a scaffold.

Then hold the colour through the life of the product. Fluorescent pigments are the least light-fast colours available, so a bag that leaves the market bright can come back faded, and a faded hi-vis bag is a complaint waiting to happen. Ask for the light-fastness figure on the fluorescent fabric, and require the reflective tape to have a bonded or welded edge rather than a stitched one, because stitched edges lift after the first hose-down.

• Fluorescent orange or yellow base, with the light-fastness figure stated for the fabric
• EN 13356 for reflective accessories; EN ISO 20471 or ANSI/ISEA 107 only for garment claims
• Continuous bands on the sides and ends, plus a piping line along the closure
• Bonded or welded edges on the reflective tape, because stitched edges lift after washing

Cleanability at End of Shift

A site bag gets hosed down. That single fact decides the material and the construction, and it is the field most tech packs leave out. A bag with an absorbent lining, an open-cell foam pad or a brushed interior will hold water and alkaline residue and then carry both into the next vehicle. A bag with a closed, coated surface can be hosed and wiped and put back to work wet.

Material choice follows directly. TPU-coated and PVC-coated fabrics both wipe clean; a PU-coated nylon with a brushed tricot lining does not. Use a closed-cell foam in any pad, never an open-cell one, and keep the interior as one welded surface where the geometry allows it. Where a lining is needed for appearance, use a coated lining rather than a brushed one and weld it in.

Then let the water out. A drain grommet in the lowest corner of a bucket bag or a bolt bag is standard practice in the trades, and it belongs on any bag that will be hosed. On a closed base, add a drain channel or a removable base pad so the water has somewhere to go, and remember that a bag that cannot drain is a bag that will be left to dry, which is how mildew starts.

Finally, remove the traps. External elastic loops collect grit and hold water; internal dividers create corners that are hard to wipe; and a pocket with a fabric floor becomes a sump. Prefer welded internal dividers with radiused corners, avoid fabric floors in external pockets, and keep the external loop count low. Every one of those choices is free at the design stage and expensive after the tooling is cut.

• Closed, coated surfaces throughout; no absorbent lining and no open-cell foam
• Drain grommet in the lowest corner of any bag that will be hosed down
• Welded internal dividers with radiused corners, not stitched ones with square corners
• Keep external elastic loops and fabric-floored pockets to a minimum, because they hold grit

Testing for Site Reality

A construction bag qualification is a load test with water and abrasion attached. The sequence should mirror the shift: fill it, drop it, drag it, hose it, then open it and see whether the tools are dry. Any protocol that starts with the water test has the order wrong, because the mechanical damage is what opens the path for the water.

The drop test is the one that matters most and the one most suppliers skip. Load the bag to its rated capacity, hold it at 1 m and drop it on each corner and on the base, then inspect the base, the corners and every attachment. The acceptance criterion is simple: no split, no detached attachment, and the bag still stands upright. A drop from 1 m with 15 kg is a realistic site event.

Then the water. Hose it to IPX6 under IEC 60529 from a 12.5 mm nozzle after the drop and the abrading, then stand it in 20 mm of water for 30 minutes and check the inside for any moisture. Where an electronics compartment is specified, put dry tissue in it and record the mass gained. Then pull every handle and attachment to 40 kg on the finished assembly.

Close the loop in production. Every lot finishes at AQL 2.5 (ISO 2859-1) final inspection at our Quanzhou facility, and the sheet records the weld appearance and the base attachment, not just the cosmetic grade. Incoming cloth is verified to ISO 811 for hydrostatic head and to ISO 1421 and ASTM D751 for tear, breaking strength and adhesion, so a weak lot is caught before it is cut. The full sequence is set out on our quality and test protocol page.

1. Load: fill to the rated capacity, then pull every handle and attachment to 40 kg
2. Drop: 1 m onto each corner and onto the base, then inspect for splits and detached parts
3. Drag: 200 m across a slab or an abrasion surface, then check the base and lower corners
4. Water: IPX6 to IEC 60529, then 30 minutes standing in 20 mm of water, then check inside
5. Inspect: AQL 2.5 (ISO 2859-1) on the production lot, with base attachment recorded

Spec Checklist for Contractors

Contractor and distributor briefs come in two shapes and they need different answers. A branded professional tool bag, sold through a trade counter or a specialist retailer, is a product: it needs a name, a colour, a packaging design and a two or three year life. A site-issued bag, bought by a contractor and printed with a company logo, is a consumable: it needs the lowest unit cost that will survive a season, and appearance barely matters.

The commercial frame is the same for both. MOQ is 500 pcs per style and colourway. Sampling runs 6 to 10 working days, or 12 to 15 where a moulded base or a moulded handle is involved, and a moulded base adds its own tooling step. Bulk production runs 35 to 50 days after sample approval. Shipments are quoted FOB Xiamen with DDP available to more than 100 countries, and payment terms are T/T 30/70.

Two lines in the brief save the most money. First, state the loaded weight the bag must carry, not just its volume, because a 24-inch bag specified only by size will come back with 500D panels and 20 mm straps. Second, state the base type by name, moulded or welded hard base, because the base is the single largest cost and performance lever in the category. Our tote, duffel and tool bag lines are quoted on that basis.

Finish with compliance and documentation. ISO 9001:2015 covers the quality system and BSCI the social audit. For the European market the material file needs REACH and RoHS declarations; for the United States, CPSC documentation. If the bag is sold as a first-aid kit or a spill kit, the contents carry their own requirements, so treat the bag and the contents as two separate compliance files rather than one.

1. Format: tool tote, tool backpack, bucket or bolt bag, first-aid or spill kit
2. Loaded weight: 10 to 15 kg, 15 to 20 kg or 20 kg and above, stated in the brief
3. Ingress: IPX6 for general use, IPX7 where instruments are carried
4. Fabric: 840D as standard, 1000D to 1680D for daily dragging, with the coating thickness named
5. Base: moulded EVA or PP, or a welded hard base with the seam above the waterline
6. Reinforcement: scuff panels at the lower corners, a sleeve over any strap crossing the base
7. Visibility: fluorescent base colour with EN 13356 reflective bands on the sides and ends
8. Cleanability: coated interior, closed-cell foam, drain grommet, radiused internal corners
9. Testing: 40 kg pull, 1 m drop, 200 m drag, then IPX6 and 30 minutes standing in water
10. Commercials: MOQ 500 pcs per style and colourway, FOB Xiamen, T/T 30/70

Frequently Asked Questions

Q1: What IP rating should a construction bag have?

A: IPX6 under IEC 60529 is the right target for a general construction bag, because it covers powerful water jets from a hose and driven rain. IPX7 at 1 m for 30 minutes is worth specifying only where the bag carries a tablet, a laser measure or drawings. In every case the waterproof base matters more than the shell, because water enters through the underside.

Q2: Why is the base more important than the rating on a tool bag?

A: Because a bag is set down in standing water, and a shell that passes IPX6 will still soak the tools if the underside is fabric. A moulded or welded structural base with its seam above the waterline removes the entry path entirely. If the budget only stretches to one upgrade in this category, spend it on the base and not on a higher IP rating.

Q3: What denier fabric is best for a tool bag?

A: 840D is the general standard and the right default for a professional tool bag. Move to 1000D or 1680D for anything dragged across a slab daily, and stay at 500D only for a site-engineer bag carrying documents and a tablet. Pair the denier with a coating thickness, because a tight 840D with 0.35 mm of coating outperforms a loose 1680D with a thin film.

Q4: How much weight should a tool bag handle be rated to?

A: Rate the finished assembly, handle plus attachment, to 40 kg rather than 25 kg. A full 24-inch bag with power tools and batteries is 18 to 22 kg, and it is lifted with a swing, which multiplies the static load. The webbing should run under a welded patch and be bar-tacked on a 25 mm square with a double pass.

Q5: Should a construction bag be self-standing?

A: Yes, for anything above 10 kg. A bag that falls over spills its contents into the grit and a professional will reject it on that alone. Use a moulded EVA or PP base with a footprint at least 60 percent of the bag width, keep the centre of gravity low, and test it loaded on a slope rather than empty on a bench.

Q6: What makes a bag easy to clean on a site?

A: Closed, coated surfaces throughout, so there is nothing absorbent to hold water or alkaline residue. Use closed-cell foam in pads rather than open-cell, fit a drain grommet in the lowest corner, weld the internal dividers with radiused corners, and keep external elastic loops and fabric-floored pockets to a minimum because they collect grit.

Q7: Which reflective standard applies to a tool bag?

A: EN 13356, which covers retroreflective accessories for non-professional use, is the usual reference for a bag. If the product is to be treated as high-visibility clothing, the reference becomes EN ISO 20471 in Europe and ANSI/ISEA 107 in North America, both of which set minimum material areas and performance classes. Decide before ordering the tape.

Q8: How is a construction bag drop tested?

A: Load it to its rated capacity, hold it at 1 m and drop it on each corner and then on the base, then inspect. The acceptance criteria are no split, no detached attachment, and the bag still standing upright. Run the drop before the water test, because the mechanical damage is what opens the path for water to enter.

Q9: What is the MOQ for custom construction bags?

A: MOQ is 500 pcs per style and colourway. A moulded base or a moulded handle adds a tooling step but not a higher MOQ. Where a distributor wants to prove a market, we suggest 500 in one colourway and a follow-up run, because splitting the first order into two 250-unit lots pushes the unit price up steeply.

Q10: How long does a tool bag programme take?

A: Sampling takes 6 to 10 working days, or 12 to 15 where a moulded base or a moulded handle is involved, and mould tooling adds its own step before that. Bulk production runs 35 to 50 days after sample approval. For a spring trade-counter sell-in the brief needs to be placed in the previous autumn.

Q11: Do welded seams hold up better on a site than sewn ones?

A: Yes. Grit enters stitch holes and abrades the thread from the inside, and a welded seam has no holes for it to enter. Welding is also continuous, so there is no thread to rot against wet concrete. Where sewing is unavoidable, as at a strap attachment, reinforce the load with a welded patch and a double-pass bar-tack.

Q12: Is a tool bag personal protective equipment?

A: No. A bag is not PPE and it must not be sold as such, even in hi-vis colours with reflective bands. Where a bag carries a first-aid kit or a spill kit, the contents may be regulated in their own right, so treat the bag and the contents as two separate compliance files with separate documentation.

Q13: Does wet concrete damage a bag?

A: It can. Fresh concrete is strongly alkaline and, when wet, caustic to skin and to some finishes and coatings. The practical answer is cleanability: a closed coated surface that can be hosed at the end of a shift removes the residue before it dries. Left to dry on the bag, the residue is carried into the next vehicle and onto the next job.
